Trying to use Powerline data/control devices and need to figure out which phases in my house go to where.

The double breakers are confusing me further - and I know they alternate phases vertically but is it the same phase right to left?

Question: Are the two breakers with red arrows on the same phase?

(120v+120v=240v)

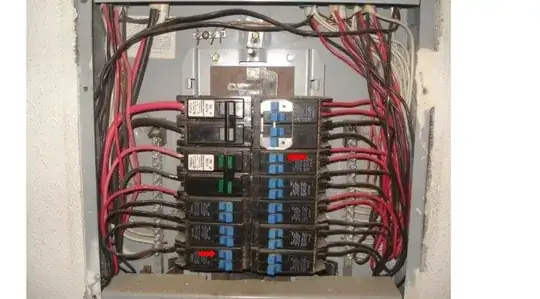

Breaker panel

Observer314
  • 1
  • 1
  • 1

1 Answers1

3

Yes, they appear to be on the same leg.

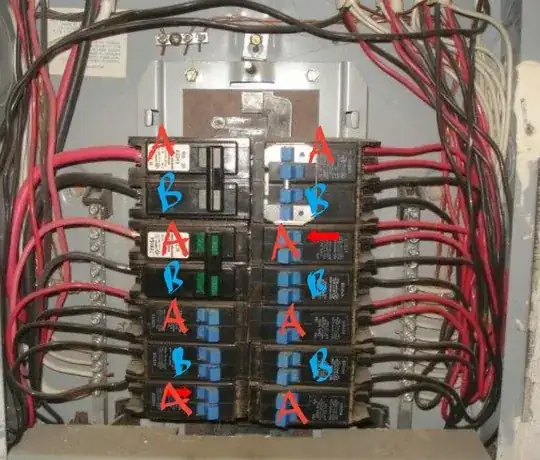

enter image description here

Unless there's something I'm missing.
