I am renovating the 2nd floor of my 1970's home. I decided to change from 1 switched outlet with a lamp in each room to the switch controlling 4-6 LEDs.

Breaker Box: Dual Pole 15 Amp Breaker

Supply Wire: Black Aluminum 12/2

Splice: White Copper Romex 14/2

Wing Connectors: Purple Al/Cu

I was able to find the power leading into the switch from my attic and cut it. The supply to the switch was 12/2 even though the breaker is 15 amp. In the picture you'll see almost all 12/2 out of the breaker box even with various 15 amp breakers. I believe the reason 12/2 was used is because it is a significantly long run. My breaker box is in the garage and the room I'm working on is the farthest room on the 2nd floor. So probably a good 50-60 foot run. I added a junction box in the attic and spliced the 12/2 with 14/2 using al/cu connections and ran the 14/2 to the outlet for constant power and from the switch to the 4 LEDs.

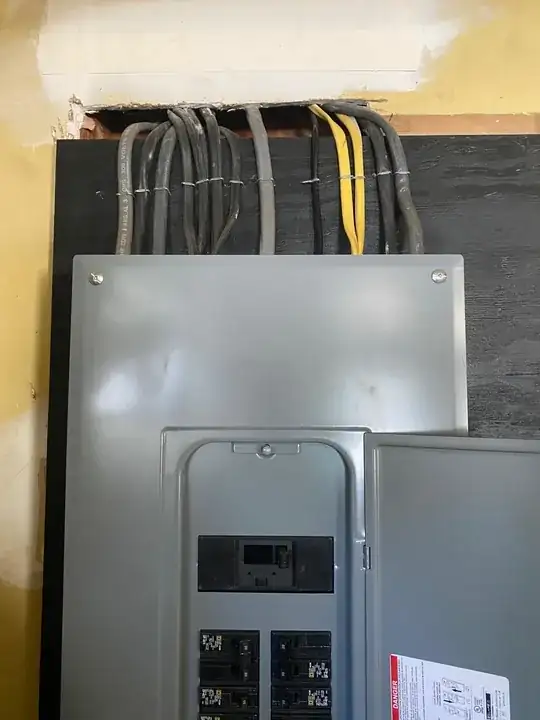

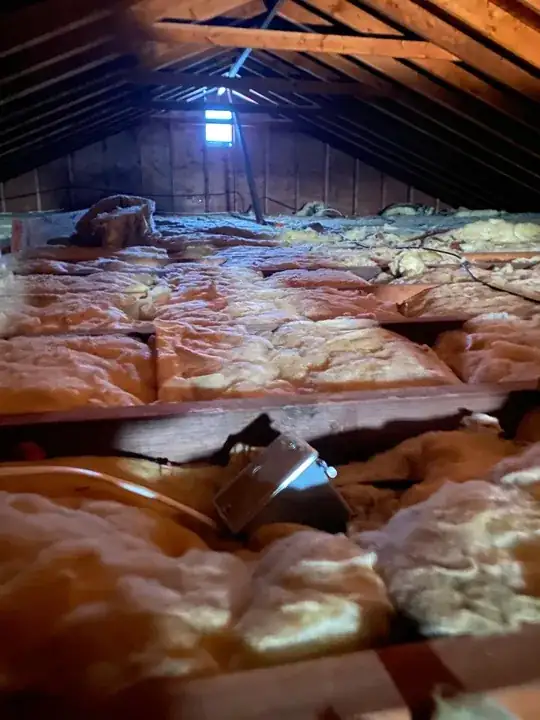

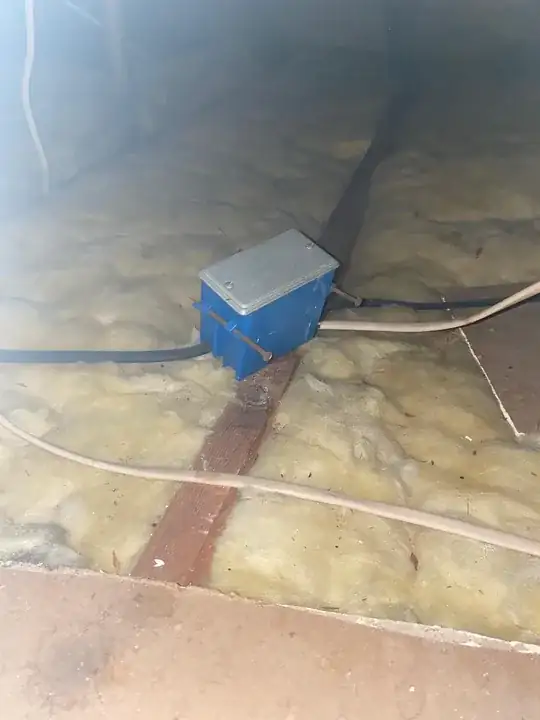

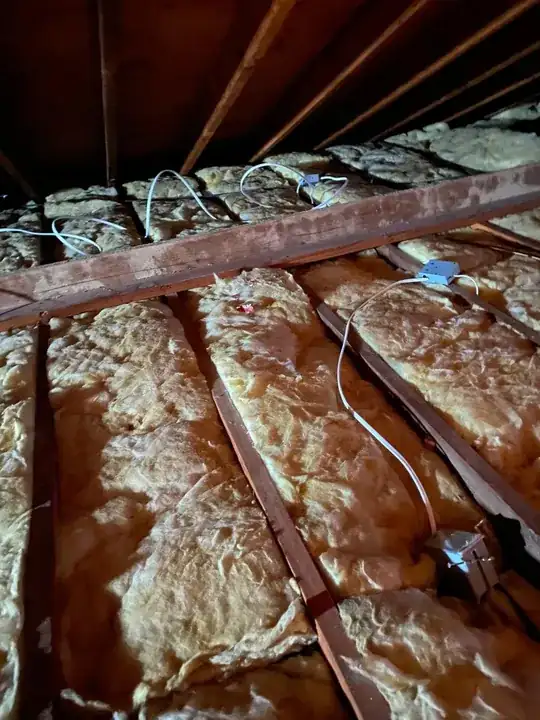

I have attached a picture of my breaker showing 12/2, 2 examples of junction boxes in my attic using 12/2 and 14/2 splices, and the 4 LED's in which I have already installed. Willing to redo if recommended.

I want to continue doing this to all the other rooms but looking for validation that what I'm doing is safe for the long term. Can I continue my project or would I be better served to head to the store and grab some 12/2?
