I have a lighting circuit with several slim LED pot-lights that are controlled with a dimmer switch. I added a second switch (see diagram below) so that I can independently turn one of the lights off while the others in the room remain on.

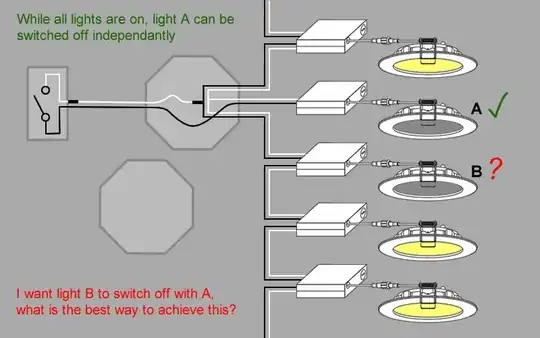

select lights in a circuit turned off by second switch

Hopefully my diagram makes sense, I'd like to change things so that two lights are now turned off by that same switch.

EDIT:

Thanks for you answers! How does the following updated diagram look?

I'm trying to retain the existing wiring as much as possible in case I ever need to remove the second switch and revert my changes, hence the seemingly unnecessary junction boxes :)

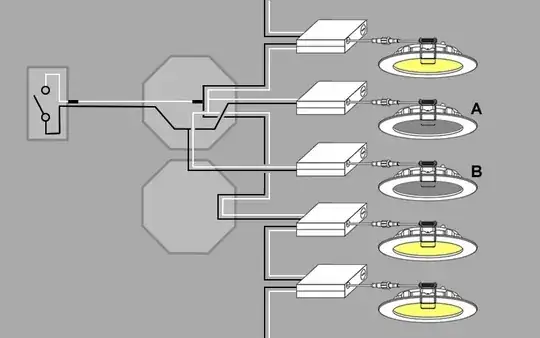

updated wiring diagram

Andy
  • 141
  • 4

2 Answers2

4

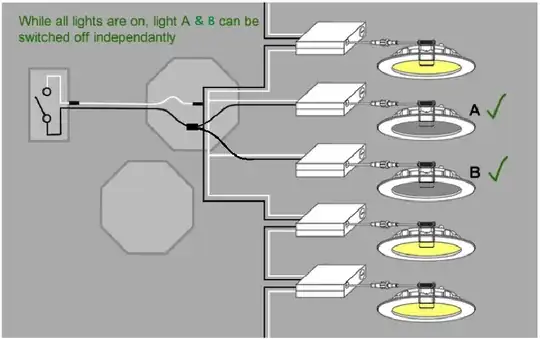

Using your own picture seems that you can connect up Light B the same way that Light A is connected.

enter image description here

Michael Karas
  • 67,833
  • 7
  • 68
  • 153
2

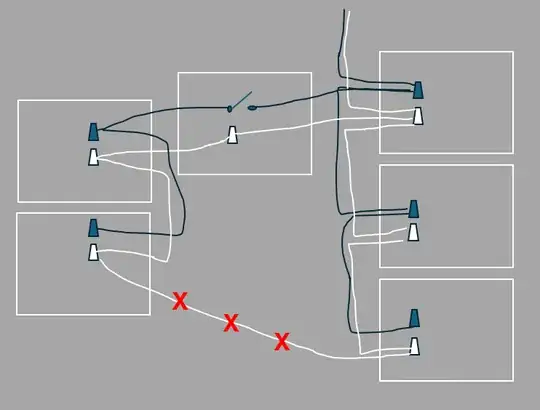

More like this. Forgive the crude drawing. Two chains of lights, one switched, the other double-switched. You don't need an extra junction box. Take a feed off any of the lights, the one closest to the second switch position. Run live and neutral to the switch. From there go to any of the double-switched lights, and from there chain them just like the first chain.

It's important that all the double-switched lights' neutral wires return via the same path as their live wires. You cannot leave the neutrals connected to the old chain and only modify the lives.

enter image description here
