One of the sides of my mower deck has it's adjustment function broke and will not move up or down.

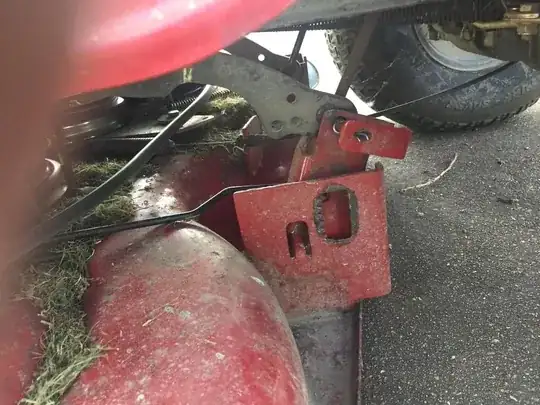

Here is the picture -

enter image description here

Seems simple. But I don't really know how it was put together and when I visit (8 total parts websites), it seems to show the picture of the missing piece but the part isn't listed or sold. So I have no idea what the part number is or what it is called. But alas I may be looking at the diagram wrong or thinking about this incorrectly.

But if you use - https://www.jackssmallengines.com/jacks-parts-lookup/manufacturer/mtd/craftsman-sears/13-lawn-tractors/2015-models/13al78xt099-247-203744-t1600-2015/mower-deck - it seems I am mainly missing the big "j" hook that links this together. This is right next to "33". This part doesn't seem to be listed anywhere and I have no idea what it is called.

What do I need to order to fix this?

blankip
  • 276
  • 1
  • 2
  • 9

1 Answers1

2

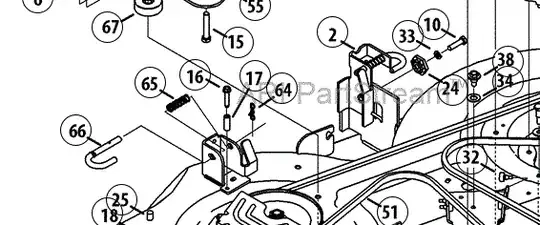

It appears that the possibly missing part is mirrored on the deck. In the linked diagram, it shows 65 and 66, spring and hook as the match for the section near the 33 part you've referenced.

Your photo shows an irregularity in that there is a cotter pin "tail" extending through the hole. Such a position is not something one would install in this manner, but would be the result of a failure of another component.

You should be able to match the side shown in the photo with the opposite side to confirm the missing parts are 65 and 66.
