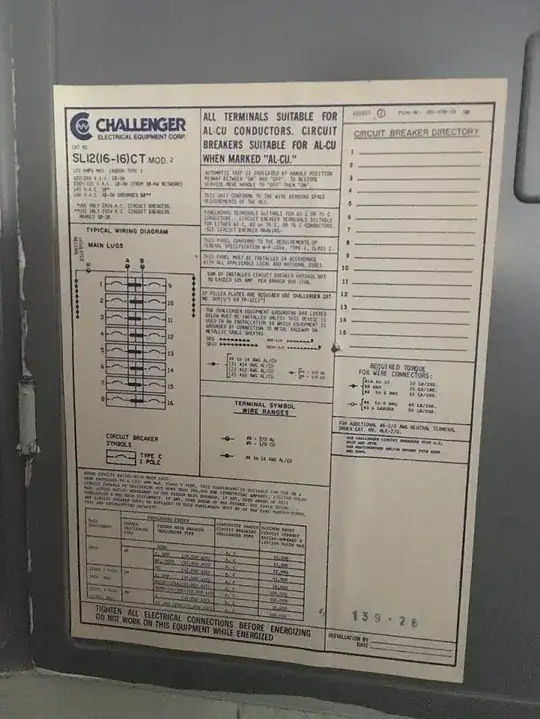

I am trying to determine what GFCI breaker to use for a 20A MWBC in an old Challenger panel that requires Eaton Cutler-Hammer BR breaker replacements. I have found at least three models that appear to be potential fits: GFTCB220, GFTCB220CS and GFCB220. Is either one of these good or do I need to get a specific one? I do not currently have any Challenger GFCI breaker on my panel, so I can't look for a fit based on the model replaced. Here is a photo of my panel label if it helps
enter image description here
A quick comparison of physical dimensions with the non-GFCI breaker BR220 does not seem to give me much of a clue either
Size comparison

MarcoD
  • 557
  • 6
  • 19

1 Answers1

7

You want the GFTCB220

While all three breakers are BR GFCIs, and thus cross-listed to fit your panel, the GFCB220 is an obsolete part number due to the last edition of UL 943 introducing an automatic self-test requirement for GFCIs. In response to this, Eaton introduced an updated design under the GFTCB part number prefix, so that's what you want; the CS suffix simply stands for a retail clamshell package, though, so that's irrelevant.

ThreePhaseEel
  • 87,685
  • 36
  • 144
