I have a 2005 Mazda 3, and I have located both the interior and exterior fuse box. Neither one of the fuse boxes have relays in it concerning the power windows. Does anyone know where they are on this car? I think I need to replace one to get my window to go back up.

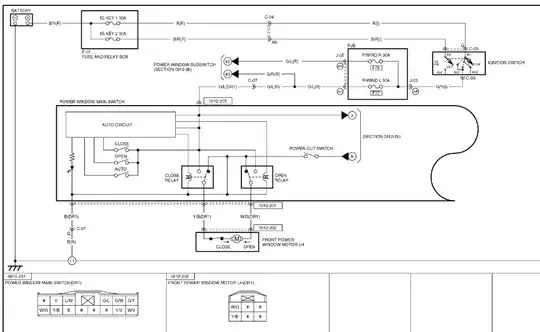

UPDATE: Is this circuit diagram telling me that the relays for my power windows are in the main switch on the driver side (diagram courtesy of AutoZone saying it is for my Mazda 3 2005)?

AutoZone's Wire Diagram for Mazda 3 05

tarheel
  • 885
  • 7
  • 16
  • 24

2 Answers2

4

Based on your wiring diagram, the relay is inside the switch, and based on that it's not serviceable.

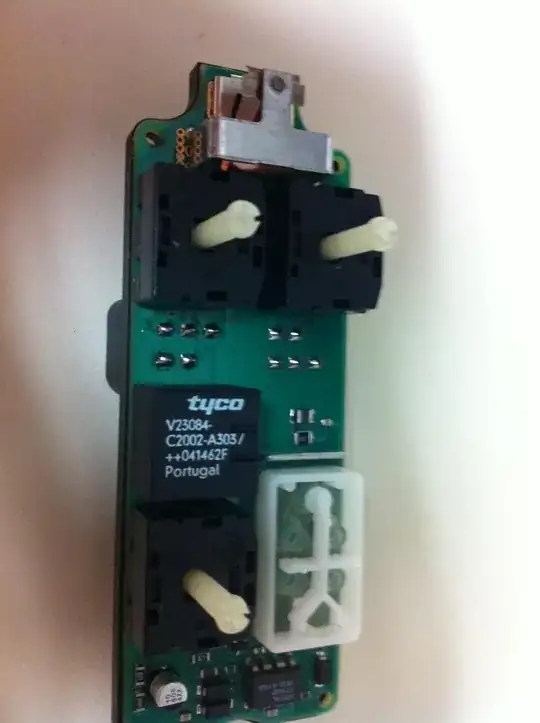

Based on the picture you posted here

enter image description here

That black square box on the switch (tyco) is the relay.

Here is are the specs (PDF)

Here is a where you can buy it

Based on that I would say it's replaceable, with some soldering required. It would take some additional testing to know if it's the relay, or another part of the switch assembly that was causing the failure.

Community
  • 1
Move More Comments Link To Top
  • 18,788
  • 5
  • 54
  • 76
1

I might be wrong, but have you looked through the switch circuitry? Sometimes those modules come all in one, and you have to replace it.

FossilizedCarlos
  • 3,249
  • 17
  • 26
