Questions tagged [valve-lifter]

Mechanical part which rides upon a cam lobe and allows for the actuation of the lifter. Also known as a "tappet" and just "lifter"

This mechanical part of the engine follows the profile of the cam lobe and translates that motion out to the valve. This motion opens the valve so that air/fuel can enter a cylinder by the intake valve during the intake cycle and so exhaust can escape from the cylinder during the exhaust cycle.

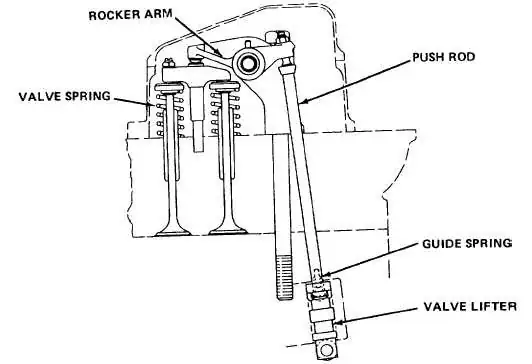

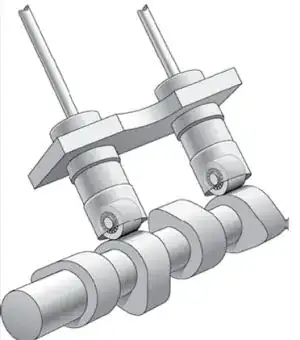

enter image description hereenter image description here

Typical lifter/valve arrangement.

Lifters can be either hydraulic or solid (mechanical). Hydraulic lifters are pumped up using engine oil. This provides a buffer which provides cushion for the entire valve train, but can reduce performance, especially at higher engine speeds. At higher engine speeds, lifters can become what is termed "pumped up", which can cause valve float and possible engine damage. The solid lifter is just what the name implies: It's solid. In order to overcome the nature of it, you need to lash the rocker arm, or leave space between the rocker arm and the valve. If there isn't any space, the valve will not close entirely during operation, which will reduce performance. The solid lifter can allow for much higher engine speeds before valve float occurs.

A lifter can also be a "flat tappet" or of the roller variety. Either of these can be solid or hydraulic. A flat tappet lifter body has a machined face which rides directly on the cam eccentric. A roller lifter has a separate roller piece attached to the base of the lifter which rolls against the cam eccentric. The roller lifter has a lot of performance advantages over the flat tappet, though is more expensive in initial cost.

16 questions
10
votes
1 answer

What are the various kinds of tappets / lifters and the advantages / disadvantages of each

A previous question about tappets found here: What are Tappets? covers the basics of tappets. If we go the next step, here are my questions: What are the various kinds of tappets / lifters? What are the advantages and disadvantages of each? Are…
cdunn
  • 9,326
  • 8
  • 44
  • 76
6
votes
1 answer

How much kilometres it takes to fully set new hydraulic tappets after installing in royal enfield classic 350?

I just installed new hydraulic tappet set due to noisy old hydraulic tappets. 90% noise(tik-tik) is gone. 30-40 kilometres are done after new hydraulics installation but still 10% tik tik noise can be heard. So how to make engine less noisy after…
5
votes
1 answer

Valve lifters hitting camshaft when hand cranking

I have a 2000 Chevrolet Malibu 3.1. I changed the head gaskets the intake manifolds and the valve stem seals. Before starting the engine and putting everything 100% back together , I wanted to make sure that nothing would sound before starting.…
Ant Davis
  • 51
  • 2
5
votes
4 answers

Why do valve lifters get stuck? How come they unstick by themselves?

I've seen this happen on a couple of different engines so far (BMW S62, Mitsubishi 4G63) but am not sure about how commonplace it is. If an engine isn't used for an extended period of time, the subsequent startup results in a tapping sound that…
Zaid
  • 39,276
  • 50
  • 151
  • 294
3
votes
0 answers

Stuck lifter; roller pin backing out

I've got a 1.9L Ford Escort. It has a stuck lifter. When trying to remove it, it'll only come up a very short distance and then stop. It appears that the pin that holds in the roller at the bottom of the lifter has started backing out, preventing…
V. Gossert
  • 31
  • 1
2
votes
1 answer

Replace lifter without removing heads or engine in 2000 Mustang?

https://www.youtube.com/watch?v=F-9dFdGq-vI I don't see why it wouldn't work as long as I torque everything down correctly and put it back together correctly.
Chris Manning
  • 245
  • 1
  • 3
  • 9
2
votes
1 answer

Can you change HP by adjusting valves?

This may be a crazy question but can you increase your HP if you adjust your valves (by changing your lifters or whatever other mechanism is used for shimming) to decrease the gap between the riding surface and the cams so that the cam pushes the…
amphibient
  • 6,777
  • 42
  • 102
  • 139
2
votes
1 answer

Symptoms of valve adjustment necessity

I have recently had to rearrange my valve lifters in order to tune to an optimal clearance between cams and lifters, which on my Tacoma is 0.15-0.25 mm for the intake and 0.29-0.39 mm for the exhaust valves. I had performed multiple rounds of…
amphibient
  • 6,777
  • 42
  • 102
  • 139
2
votes
2 answers

Gauging valve lashes with shuffled set of lifters

When I took my cylinder heads apart, I wasn't aware of the need to keep track of the order of valve lifters so I didn't. I did, however, separate the left from right side of the engine (V6 Tacoma). So I have two sets of 12 lifters each that I need…
amphibient
  • 6,777
  • 42
  • 102
  • 139
1
vote
1 answer

Checking brand new hydraulic lifters

Recently, I bought a complete set of OEM hydraulic lifters. They are all nice and shiny. They are all inside small plastic bottles and there is some oil inside each bottle. I looked inside all the lifters and they were all fine except for one of…
LFY MP7.3
  • 1,094
  • 14
  • 33
1
vote
1 answer

Minor discrepancy in valve clearance reading

I started my engine work on a V6 Toyota Tacoma 3 mohths ago and continuing now from where I left off. Back then I did a valve clearance measurement on all the 24 valves with all the timing chains on (main, left and right). I just took all the chains…
amphibient
  • 6,777
  • 42
  • 102
  • 139
1
vote
0 answers

Less oil on certain valves than others

I've got a 1986 3.8l 6-cylinder mustang. I've been hearing a ticking underneath the driver's side valve cover, so I took it off. I didn't see anything wrong so I started the engine sans valve cover. This is what it looks like. Oil doesn't appear to…
MD XF
  • 34
  • 5
1
vote
1 answer

Residue inside hydraulic lifter

My 1993 1.6L MX-5 with 103.000 Km was starting to make a faint ticking sound, coming from near the Cam Angle Sensor (CAS). Since the car was due a timing belt and water pump change, I decided to go a bit deeper and pull all the hydraulic lifters to…
AmiguelS
  • 203
  • 2
  • 3
0
votes
1 answer

Lubricating inside valve tappets/shims

Toyota engines come with tappets to shim between the valve rods and the camshaft. They look like small cylinders and are about the size of 2 oz shot glasses. When installing them on top of the rod stems, is it necessary or even recommended to…
amphibient
  • 6,777
  • 42
  • 102
  • 139
0
votes
0 answers

1987 dodge W100 making a loud tap/knock after rebuild

I have just finished rebuilding my 318 and have not even been able to move it yet, I started it and was hearing a very bad exhaust leak and tap. I put a left over gasket on the one side (along with the new one) and the sound from that side quieted…
